PR52-14 not working

Hardware
1

Hello,
I bought a PR52-14, I’m trying to read a simulated frequency from my Frequency Generator, but I can’t make it work. Is there any good guide that shows how to use this device?

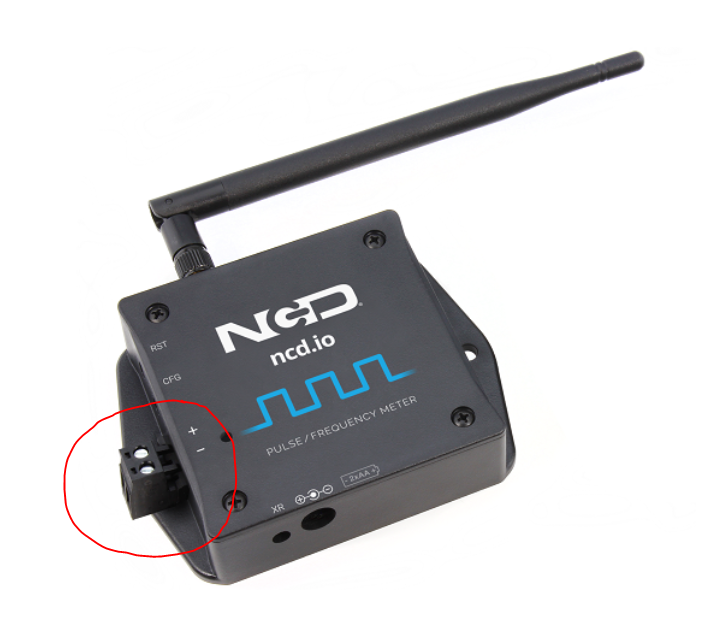

When I check the manual of the product, it is a different device:

P
P706×635 231 KB

Manual: https://ncd.io/blog/iot-wireless-frequency-meter-product-manual/

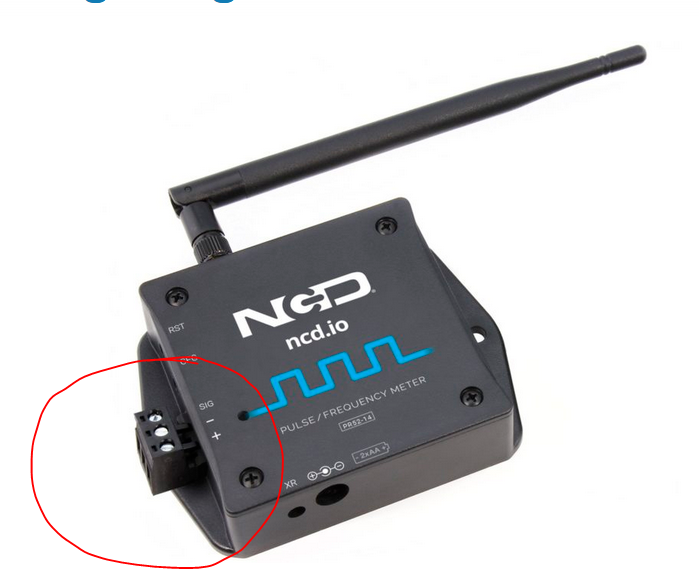

This is what I really have:

p2
p2699×575 190 KB

I tried:

  • Connect ground and signal from Frequency Generator.(DON’T WORK)
  • Connect ground and signal only to “+” and “-”. (DON’T WORK)
  • Connect an external power supply of 3.3v to “+” and “-”, connect my Frequency generator to “SIG” with shared grounds. (DON’T WORK)

I keeps sending 0 Frequency.

2

signal should be connected between gnd and Sig.
what’s your pulse voltage level.

3

That’s the way I tried. My pulse voltage level is 3.3v.

4

that should work. what s the signal freq ?

5

I’ve tried many frequencies 100 hz, 200hz even 1khz (Duty 50%), still doesn’t work for some reason.

6

i am waiting on testing log from production, as soon as i get them i ll circle back

7

Thank you Bhaskar! :slightly_smiling_face:

8

@Bhaskar no need to check more, I was able to make it work, the problem was my signal generator probe.

1 Like
9

glad you got it working. let me know if you need anything else
